• Product Description
    Company Info.
    Model:
    XQ
    Processing customization:
    Yes
    Structural form:
    Tooth rake type
    Treated sewage volume:
    10-1000 m3/h
    Power:
    0.55-2.2 kw
    Tooth rake linear speed:
    2 m/min
    Water inlet size:
    customized cm
    Outlet size:
    customized cm
    Overall dimension:
    customized m

    I. Scope of Application
    1) Water supply and drainage works pump station, intake fine grille, remove small suspended matter;
    2) solid-liquid separation of industrial wastewater such as textile, printing and dyeing, slaughtering, tanning and papermaking;
    3) Other industries need solid-liquid separation machinery in processing

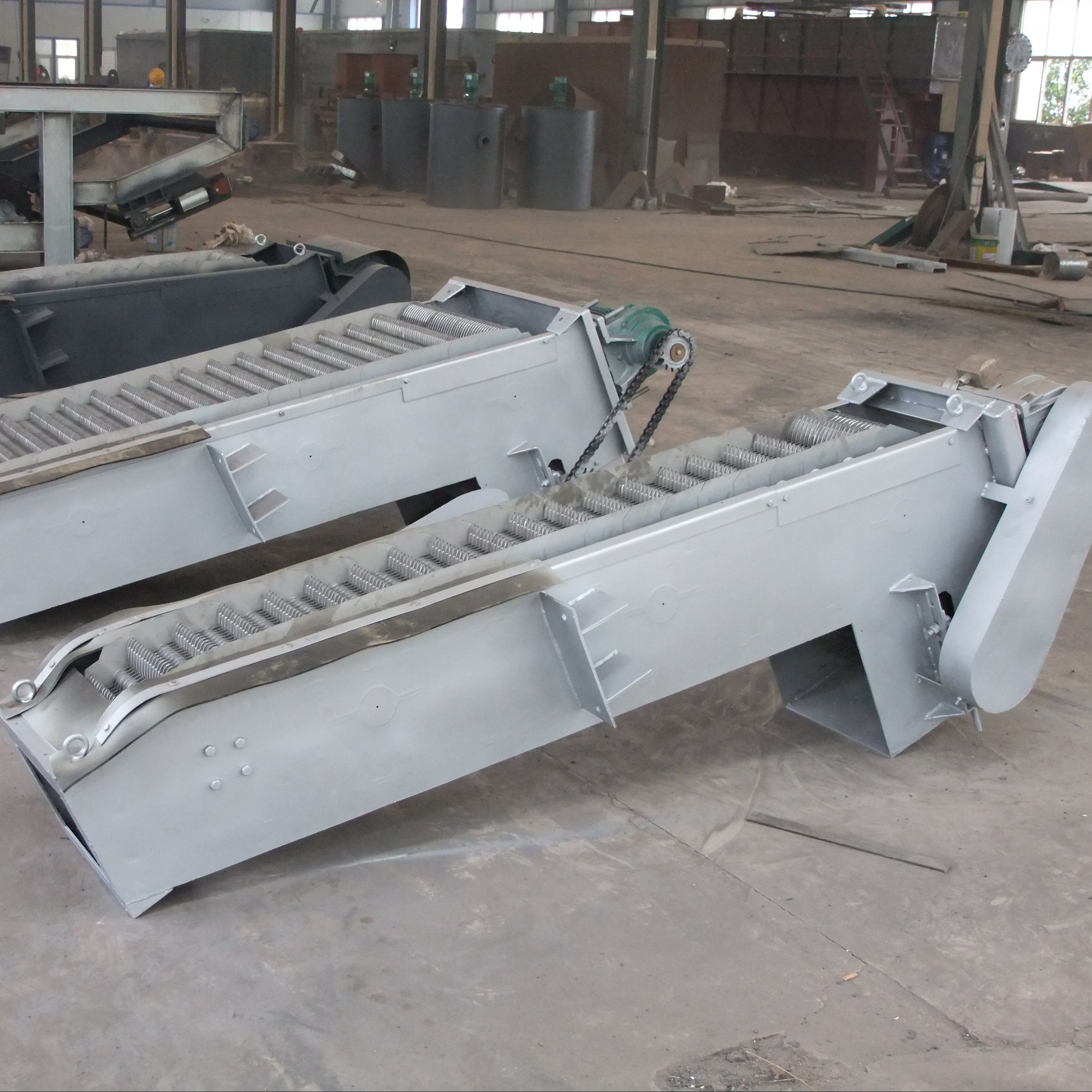

    XQ type circulating tooth harrow griddecontamination machineis composed of transmission device, chain wheel, rack, tooth harrow, etc. The tooth harrow material isABS engineering plastic, nylon or stainless steel, and the rack material is generally made of carbon steel or stainless steel.
       the teeth harrow is combined with a chain wheel according to a certain sequence to form a series closed teeth harrow chain, the chain wheels on both sides are driven by a transmission device to rotate clockwise from bottom to top on the water surface, the effective gap of the grid is the spacing of the teeth harrow, thereby forming an overflow and separation space, due to the special structure and shape of the teeth harrow, when the teeth harrow carries impurities and reaches the upper end of the grid, the impurities fall off by self-weight when the teeth harrow moves reversely, and relative self-cleaning motion is generated between the front row and the rear row of teeth harrows, At the same time, a pair of rubber plate brushes are arranged to clean the tooth harrows passing through each row, so that a cycle of cleaning is completed.

    1, no grid, a lot of small teeth connected to each other to form a large rotating surface, slag thoroughly. 2, overload protection device, reliable operation. 3, through the operation track change to complete slag unloading, the effect is good. 4, *** small gap 1mm, is a typical fine grid. 5, tooth rake high strength, nylon and stainless steel two materials to choose from. 6, the whole machine supply.

    Name(chinese)
    Name(English)
    Zhucheng City Zhongtian Machinery Co., Ltd
    China credit code
    Identity Verification
    Registered Capital
    15,000,000 CNY
    Operating term
    2003-12-01 ~ ****
    Product Category
    Buried integrated sewage treatment equipmentincineratorGrille sewage blocking equipmentDesanding equipmentdelivery deviceair flotation
    Company Registered Address:
    Longdu Industrial Park, Zhucheng City, Shandong Province
    Address
    Zhucheng City, Weifang, Shandong, China
    Nearby port
    Dalian,Qingdao,Lianyungang
    Zhucheng Zhongtian Machinery Co., Ltd. is a professional manufacturer of environmental protection machinery and equipment in Shandong Province. The company is located in the southeast of Shandong Peninsula, adjacent to the famous coastal city of Qingdao City to the east and the emerging port of Rizhao to the south. It has a superior location, convenient transportation and complete basic equipment.
    The company has passed the certification of Huaxia International Credit Certification Company and has worked closely with famous professional institutes in China all year round. It has strong non-standard design, manufacturing and service capabilities, complete production and testing equipment, complete varieties and specifications, and reliable and stable product quality. Since its establishment, the company, as a senior environmental protection equipment production base, has provided domestic industrial and mining enterprises, agriculture, petroleum, chemical industry, papermaking, pharmaceuticals, food, metallurgy, electric power and other fields with nearly 100 specifications of products in eight categories, including vortex air flotation, sludge treatment and water supply and drainage, grit chamber sand removal, sludge discharge, aeration, stirring and mixing, and sewage pumps. They are deeply trusted by users. It has become a well-known enterprise in the domestic environmental protection industry in recent years. "BR" The company adheres to the purpose of "protecting the environment and benefiting mankind", adheres to the principle of honesty and trustworthiness, being a person first and then doing things, and pursues the quality policy of "thinking before acting, continuous innovation, and seeking first-class quality; acting before persevering, and doing our best to achieve customer satisfaction". We are willing to sincerely cooperate with friends at home and abroad to work together for the noble cause of environmental protection. We are more willing to serve users in the following three aspects:
    Pre-sales service: Before purchasing Zhongtian products, we will provide you with detailed product introduction and provide you with the best selection and design reference opinions based on your use conditions and requirements.
    Technical support: Zhongtian provides you with various technical information services. In addition to consulting over the phone, we can also provide the latest daily use instructions and product maintenance information related to the products you purchased according to your needs.
    After-sales service: Zhongtian's professional and technical personnel will guide you in the installation and debugging according to your actual use situation to ensure that Zhongtian products are safe and reliable in use, and so that you can master more comprehensive and scientific product use methods. We will provide you with timely personnel training services. We implement "three guarantees" and lifelong services in accordance with relevant national and industry regulations.
    In short, we Zhongtian people will continue to work hard as before, continue to provide high-quality products and perfect services to our customers, and be your sincere friends!
