Product DescriptionCompany Info.<>
- Processing customization:
- Yes
- Types:
- Medical waste incinerator
- Model:
- ZTFS
- Incineration capacity:
- 30-50
- Incinerator size:
- 25 customization cm
- Incineration chamber volume:
- 21 Customization m3
- Inlet size:
- 15 Customization cm
- Air blower:
- 3 Customization kw
- Induced draft fan:
- 2 Customization kw
- Burner power:
- 5 Customization w
- Burner fuel consumption:
- customized kg/h
- Voltage:
- customized v
- Weight:
- customized kg
- Chimney size:
- customized cm
I. Introduction
At present, the output of hospital waste in China is increasing continuously. Hospital waste has the characteristics of scattered distribution, small output and complex composition. Hospital waste belongs to hazardous waste and has been listed in the National Hazardous Waste List for a long time. It has extremely high infectivity and danger.
Medical waste specifically refers to wastes with direct or indirect infectivity, toxicity and other hazards generated by various medical and health institutions in medical treatment, prevention, health care, teaching, scientific research and other related activities, such as surgical gowns, gloves, disposable syringes, disposable infusion tubes, waste paper, cotton yarn (bandages), medicine bottles, drug residues, surgical wastes, some domestic wastes and infectious wastes, etc. If it is not treated and discarded, it will pollute the living environment and bring safety hazards to people's health. Medical waste incinerator is a stove equipment specially designed to burn medical waste, and it is a necessary waste disposal machinery in hospitals.
Accordingto the domestic and foreign medical waste treatment experience and feasibility reportanalysis:compared with industrial hazardous waste, medical waste has the characteristics of small bulk density, loose material and high average calorific value. The pyrolysis gasification incinerator can treat medical waste well and ensure the emission of flue gas up to standard.Therefore, thegratefurnacecantreat medical waste well,andits management is convenient, the operation cost is low, the maintenance amount is small and the service life is long.
II. Product Description

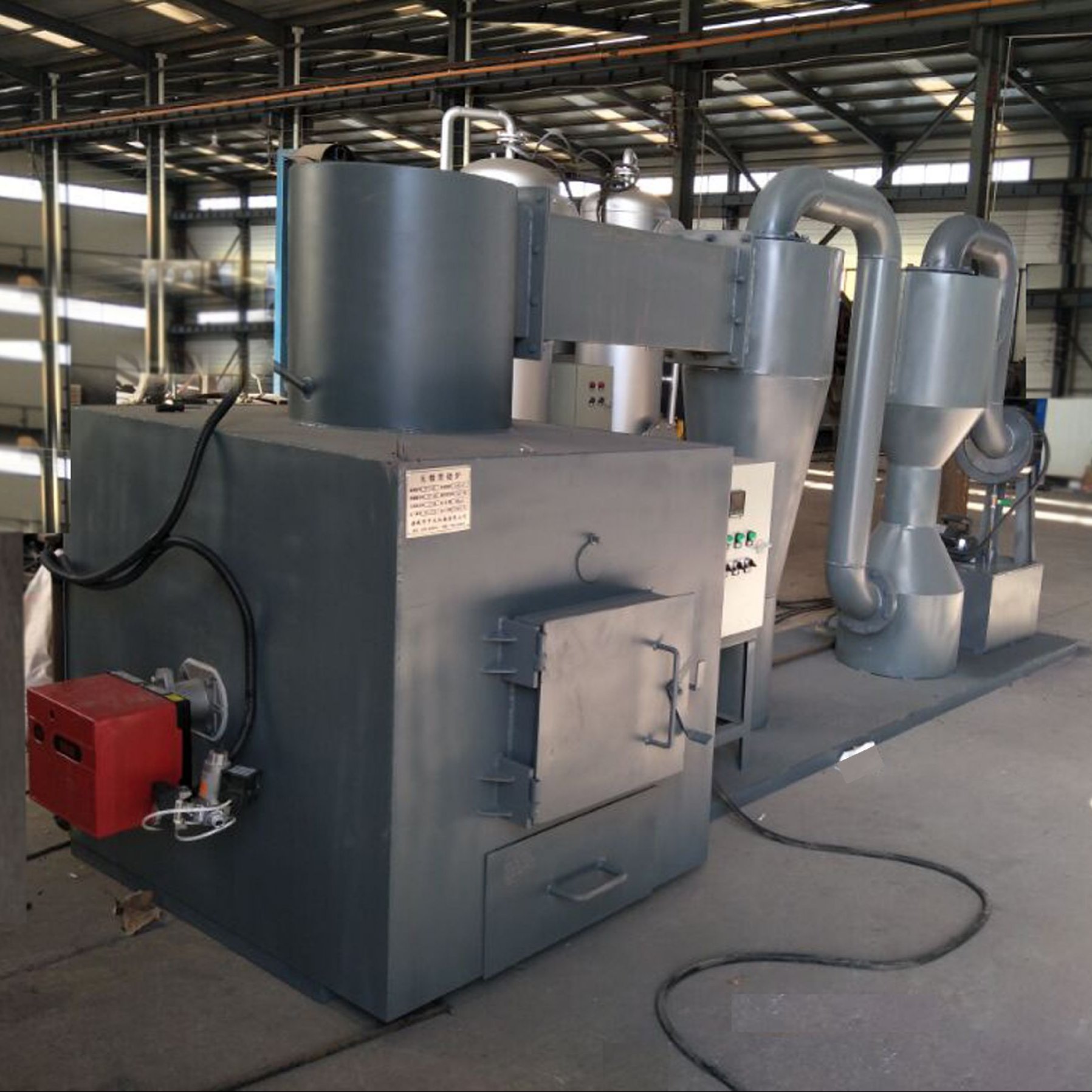

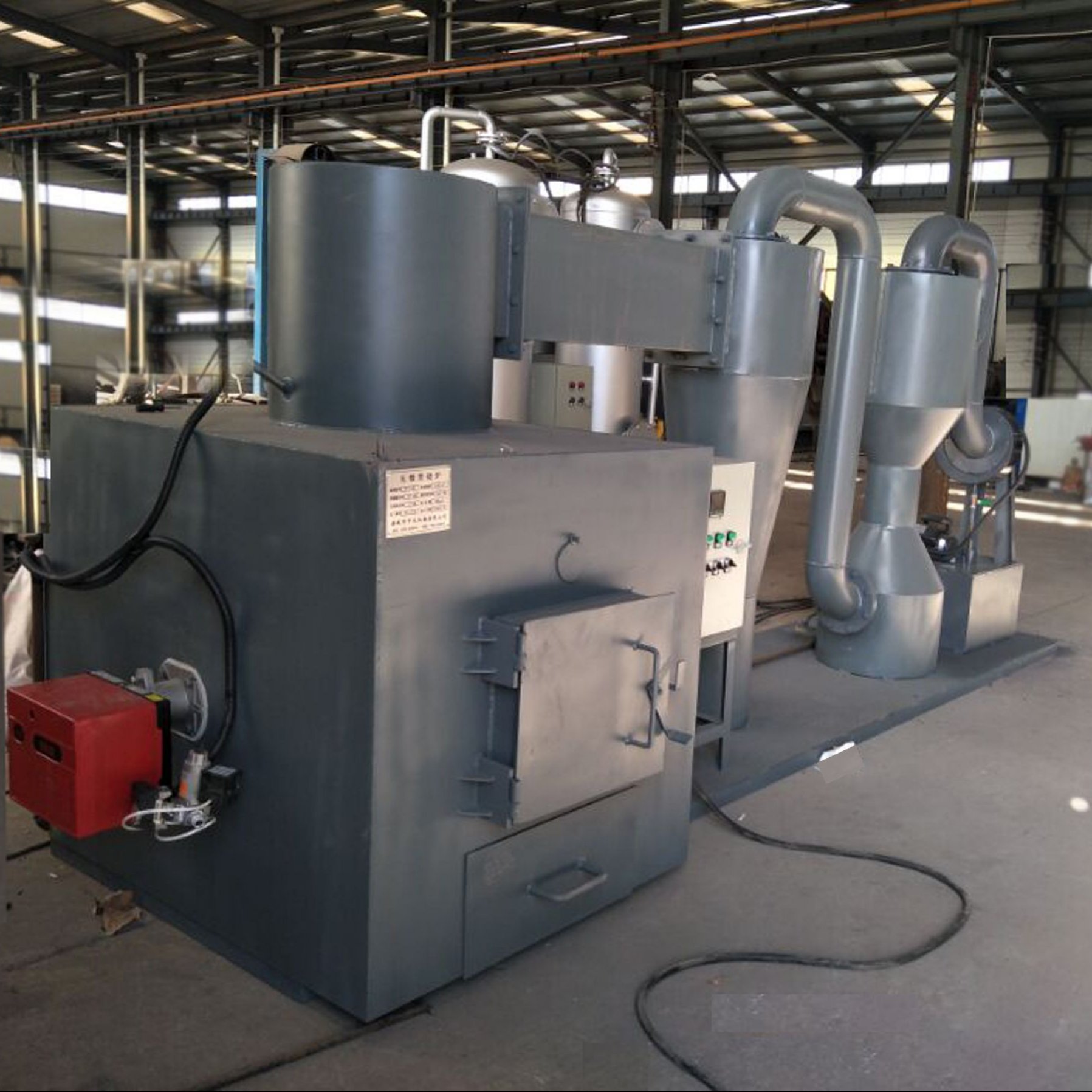

1.The composition of the incinerator includes:
Furnace body, primary combustion chamber, secondary combustion chamber, cyclone dust collector, chimney, flue, pipeline system, high pressure blower, secondary pressure induced draft fan, primary combustion machine, electric control cabinet, temperature display device, detection device, etc.
2. Equipment description
The medical waste incinerator developed by our companyis a kind of grate furnace, and it is also a simple andpracticalincinerator. The outer shell of the furnace body is processed and welded by steel plates, the inner part of the incineration chamber is built by refractory materials or prefabricated refractory materials, and thermal insulation materials are filled between the refractory bricks and the steel shell. The lower part of the incinerator is equipped with a fixed grate, and the feed inlet can be arranged at the upper, front or side of the incinerator.
Waste is manually put into the primary combustion chamber of the furnace body, and the primary combustion is started by automatic temperature control. According to the principle of combustion three-T (temperature, time and vortex), the waste is fully oxidized, pyrolyzed and burned in the combustion chamber of the furnace body. The flue gas generated by incineration enters the second combustion chamber, and the harmful substances in the flue gas that are not burned up are further destroyed in the second combustion chamber. In order to decomposethe unburned substances in the furnace completely and meet the emission requirements, it isnecessary to turn the material row. Meanwhile, the second combustion chamber is equipped with a burner for combustion support, and ablowerdevice is configured to ensure that the flue gas fully contacts with oxygen at high temperature, and at the same time, ensure the residence time of the flue gas in the second combustion chamber(the air supplyvolume can be adjusted according to the oxygen content of the flue gas at the outlet of the second combustion chamberto meet the combustion). The temperature in the secondary combustion chamber is controlledat about 900-1000℃. And throughcyclonedust collector to remove larger particles of dust, so that its incineration efficiency and destruction removal rate of more than 99%, so that it has no peculiar smell, no odor, smokeless effect, up to the national emission standards, and then into the chimney discharged into the atmosphere. Burnt ash falls into ash pits below grates and is scraped out manually. Thermocouples and combustion burners are installed on the side walls of the incinerator, which can safely and easily controlthe startup, shutdown and heat value of the incinerator. In this way,the incineration, sterilization and disinfection of medical waste can be safely and thoroughly realized.
3. Exhaust gas treatment device
The medical waste incinerator researched by our companyis equipped with heat recovery system and tail gas treatment system, which constitutes a reliable flue gas treatment system without secondary pollution.
1)cooling hot air by heat exchange, and the hot water after exchange can be used for heating to realize multi-stage utilization of energy;
2)Spray dry flue gas desulfurization is adopted for desulfurization device. The process uses atomized lime slurry to contact flue gas in spray drying tower, lime slurry reacts with SO2to form a dry solid reactant, which is collected by dust collector together with fly ash. Stainless steel ceramic spraying device can well cause high temperature corrosion, increase the service life of the device;
3)cyclone dust collector is adopted
My company'scyclone dust collectoris the use of rotating airflow generated by the centrifugalforcewill be dust particles separated from the dust flow of dust removal devices. It has the advantages of simple structure, small volume, no special auxiliary equipment, low cost, medium resistance, no moving parts in the device, convenient operation and maintenance, etc. Cyclone dust collectorsare generally used to collect particles above 5-15 microns, and their dust removal efficiency can reach more than 5%.
III.Features:
1)Medicalwaste incinerator, using advanced incineration technology and equipment totreatmedical solid waste, has the following characteristics:
Excellent design, small footprint; simple operation, convenient maintenance; energy saving, safe and reliable; low price, long service life. The equipment has advanced technology and excellent consistent quality, and comprehensively realizes the harmless, non-quantitative and stable treatment of solid waste treatment.
2)Design life
The incinerator can meet the needs of all-weather operations and can operate continuously and intermittently. The annual operating time is not less than 8000 hours, and the design life is more than 10 years.
The outer shell of furnace body is steel structure, the inner wall is refractory casting material with different properties, the inner layer is high temperature resistant casting material, which can withstand high temperature of 1790℃, and the middle is light refractory material, which can not only ensure sufficient combustion temperature in the inner part, but also keep the outer shell low temperature to prevent scalding. The refractory material is integrally cast, which is not easy to fall off and corrode.
IV.Implementation standards:
HT /T18-1996 Pollution Control Standard for Small-scale Incineration issued by State Environmental Protection Bureau.
1. Diesel fuel combustion is adopted.
2, ignition mode: automatic ignition.
4, operation mode: continuous operation.
5. Waste gas treatment: desulfurization and dust removal
6, incineration temperature: 600-900℃ (temperature adjustable)
7, furnace pressure: negative pressure design, no backfire
8, design average calorific value: 2500Kcal/Kg.
9, the total area issmall(floor chimney) using simple canopy.
V.Safety indicators:
1. Before stopping operation, the device has a detection of the combustion chamber cooling program, so that when the combustion chamber temperature drops to the set temperature, the incinerator stops all operations.
2. There is a connection protection device between the control cabinet and each control equipment to avoid leakage. When the relative humidity is 85%, the insulation resistance of the electrical circuit is not less than 24MΩ, and there is a succession ground to transmit leakage power. The cable is protected by a metal hose.
3. This equipment has been verified by the technical department after delivery, and the installation of oil circuit and gas circuit is very firm, and after pressure test, there is no leakage phenomenon. nbsp;
VI.Main technical parameters
Capacity: 50-3000 kg/h Furnace temperature: 650-850℃
High temperature flue gas residence time 2 s DRE: 99.99%
